Glint Error in Tracking Radar
The accuracy of tracking in radar systems can be limited by various factors, including amplitude fluctuation, angle fluctuation (also known as target glint), receiver thermal noise, and servo noise. Each of these factors contributes to the overall tracking limitations in different ways. Here, we focus on the phenomenon of glint error:
Amplitude Fluctuation
- A limitation factor for lobe switching and conical scan radars, but it is less critical for monopulse radar systems.
Angle Fluctuation or Target Glint
- In a tracking radar, the Apparent Angle of Arrival (AOA) of a target is the direction of the antenna with a zero error signal.
- The apparent AOA may not be confined to the physical extent of the target and can deviate from the actual target direction.
- Changes in the target aspect with respect to the radar can cause the apparent AOA to randomly wander, a phenomenon referred to as angle fluctuation or target glint.
- Glint is more pronounced when a relatively large target is at a short range, potentially limiting the radar’s ability to accurately track the target.
- Glint error varies inversely with distance, and it becomes more significant as the target gets closer.
- Different carrier frequencies may result in different glint errors.
Reducing Glint Error
- Glint error can be mitigated by averaging independent measurements obtained with frequency agility.
- Averaging over a bandwidth greater than c/2D, where D is the target depth, helps reduce the impact of glint error.

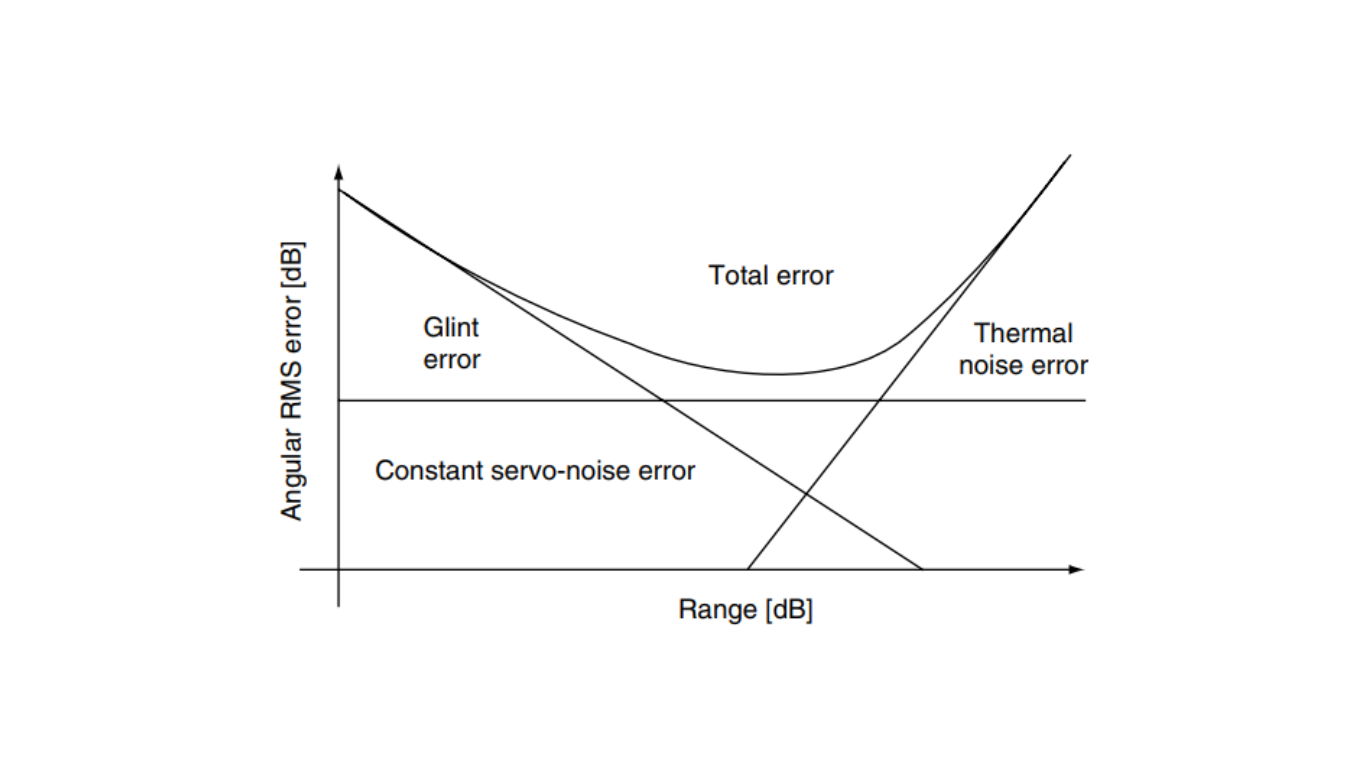

- The qualitative angular error due to glint is inversely proportional to the range, as illustrated in Figure 1.
Comparison with Other Errors
- The thermal noise term is inversely proportional to the square of the range (R^2).
- Glint error is inversely proportional to range (R).
- Servo noise is independent of range.
Understanding and managing glint error is major for radar systems, particularly in tracking applications. Strategies such as frequency agility and proper signal processing techniques are employed to minimize the impact of glint on tracking accuracy.
