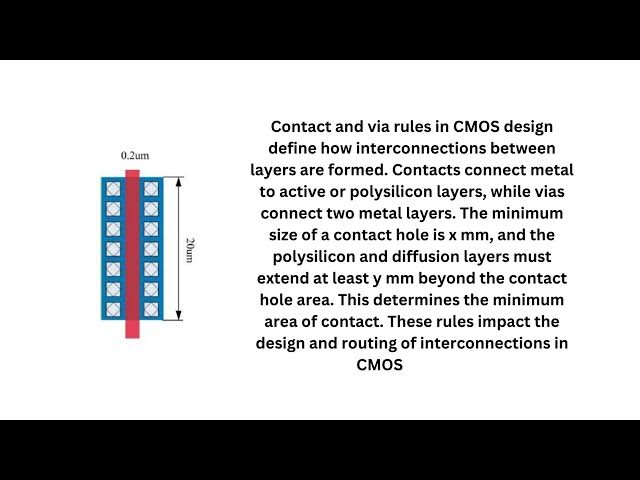

what is the purpose of contact and buyer
0:02
roles in CMOS design contact and buyer
0:05
rules in CMOS design Define how
0:07
interconnections between layers are
0:08
formed contacts connect metal to active
0:11
or polysilicon layers while gas connect
0:13
to metal layers the minimum size of a
0:16
contact hole is excellent and the
0:18
polysilicon and diffusion layers must
0:19
extend at least buying beyond the
0:21
contact hole area this determines the
0:24
minimum area of contact these rules
0:26
impact the design and routing of
0:28
interconnections in CMOS circuits via
0:31
balanced substrate contacts important in
0:33
CMOS design answer well and substrate
0:36
contacts and CMOS design are essential
0:38
for connecting the welven substrate
0:39
regions to supply voltages failing to
0:42
establish these connections can result
0:44
in resistive paths between substrate
0:46
contacts and Supply rails potentially
0:48
leading to parasitic effects like latch
0:50
up these contacts ensure the proper
0:52
operation and reliability of CMOS
