Why do we extend Poly Over the Diffusion in Layout #thesiliconvlsi
View Video Transcript
0:01
Hello friends today I am going to
0:03
discuss about why we extend the pulley
0:05
over the diffusion
0:07
I hope you know the CMOS verification
0:09
process in that we are using a piece of
0:11
after that annual fabrication is
0:14
there after that poly will fabricate it
0:16
after that source and drain implant will
0:18
be there so here second question might
0:20
come like why we are using poly instead
0:23
of metal gate so so for that I have a
0:25
different video you can watch later so
0:27
first we will concentration on this poly
0:30

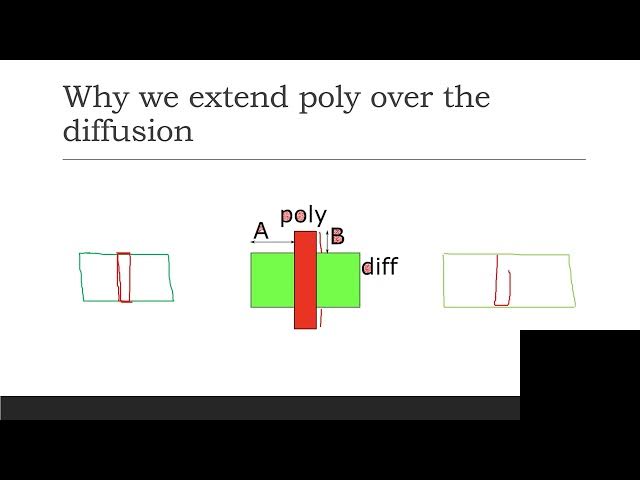

extension if you see here
0:32
clearly be here this is poly extension
0:35
is there why can't we use like this way
0:38
let me draw the diffusion
0:41
let me draw the polling why we can not
0:46
do like this way why we there is
0:48
extensions needed so as I told you like
0:52
first poly will fabricate after that
0:54
with the iron implantation source and
0:57
drain will fabricate it so for that poly
1:00
will fabricate in fabrication process
1:02
the whatever fabricated layer is there
1:05
it is not exactly as the drawn with so
1:09
here if you see I draw pulley exactly on
1:14
the edge of the diffusion so after
1:16
fabrication there might be chances to
1:20
short between showers and drain let me
1:22
show you how it will show let's assume
1:24
this is source and drain so when pavoli
1:28
will be fabricated it will be like this
1:30
way
1:31
like this
1:32
it will not exactly fabricated as here
1:36
so there might be chances between short
1:39
between source and drain to avoid that
1:41
we are extending the pulley over the
1:44
diffusion so the main definition why we
1:48
are using why we extend pole over the
1:50
diffusion is we extend poorly from the
1:52
diffusion to avoid the short circuit
1:55
between the source and ring
1:57
during the fabrication process so this
2:00
is the main keyword what I am going to
2:02
explain you is this short circuit
2:04
between source and Trend so the main
2:07
answer for this question is to avoid the
2:10
short circuit short circuit between
2:12
source and drain we are using pulley
2:16
extension
2:17
I hope you get the answer thank you so
2:20
much for watching my video
