Diffusion in Silicon: 7 Concepts

Diffusion in silicon is a semiconductor fabrication process used to introduce dopant atoms into selected regions of a silicon wafer. These dopants change the electrical properties of silicon, allowing engineers to create n-type and p-type semiconductor regions used in diodes, transistors, and integrated circuits.

The process typically uses elevated temperatures to help dopant atoms move through the silicon crystal. The final dopant distribution depends on factors such as temperature, diffusion time, dopant concentration, and the properties of the silicon and dopant materials[1].

Understanding diffusion in silicon is important for learning semiconductor fabrication, CMOS processing, and the development of integrated circuits.

What Is Diffusion in Silicon?

Silicon has a crystalline structure in which atoms occupy an organized lattice. During semiconductor fabrication, selected impurity atoms, known as dopants, are introduced into the silicon to modify its electrical conductivity.

Diffusion is the movement of atoms from regions of higher concentration toward regions of lower concentration. In semiconductor processing, heat provides the energy needed for dopant atoms to move through the silicon lattice.

Diffusion furnaces operate at high temperatures, often around 900–1200°C depending on the process and dopant. The exact temperature is determined by the required dopant profile and the thermal budget of the device.

The two common dopant types are:

• Donor dopants: Elements such as phosphorus that can provide additional free electrons, producing n-type silicon.

• Acceptor dopants: Elements such as boron that can create holes, producing p-type silicon.

Both n-type and p-type silicon remain approximately electrically neutral overall. Doping changes the concentration of mobile charge carriers, which affects the material’s electrical conductivity.

How Does the Diffusion Process Work?

The diffusion process introduces dopant atoms into selected regions of a silicon wafer. A simplified process includes the following steps.

1. Wafer preparation: The silicon wafer is cleaned to remove unwanted contaminants.

2. Surface preparation: The wafer is prepared for the intended diffusion process.

3. Dopant introduction: A suitable dopant source supplies dopant atoms to the wafer surface.

4. High-temperature treatment: The wafer is heated so dopant atoms can diffuse into the silicon.

5. Dopant redistribution: Atoms move deeper into the wafer according to the temperature, time, concentration, and diffusion characteristics.

6. Cooling and inspection: The wafer is processed and inspected to check the resulting dopant profile.

In some processes, dopants are supplied through a gas-phase source. Other methods use solid or liquid dopant sources. The specific technique depends on the fabrication process.

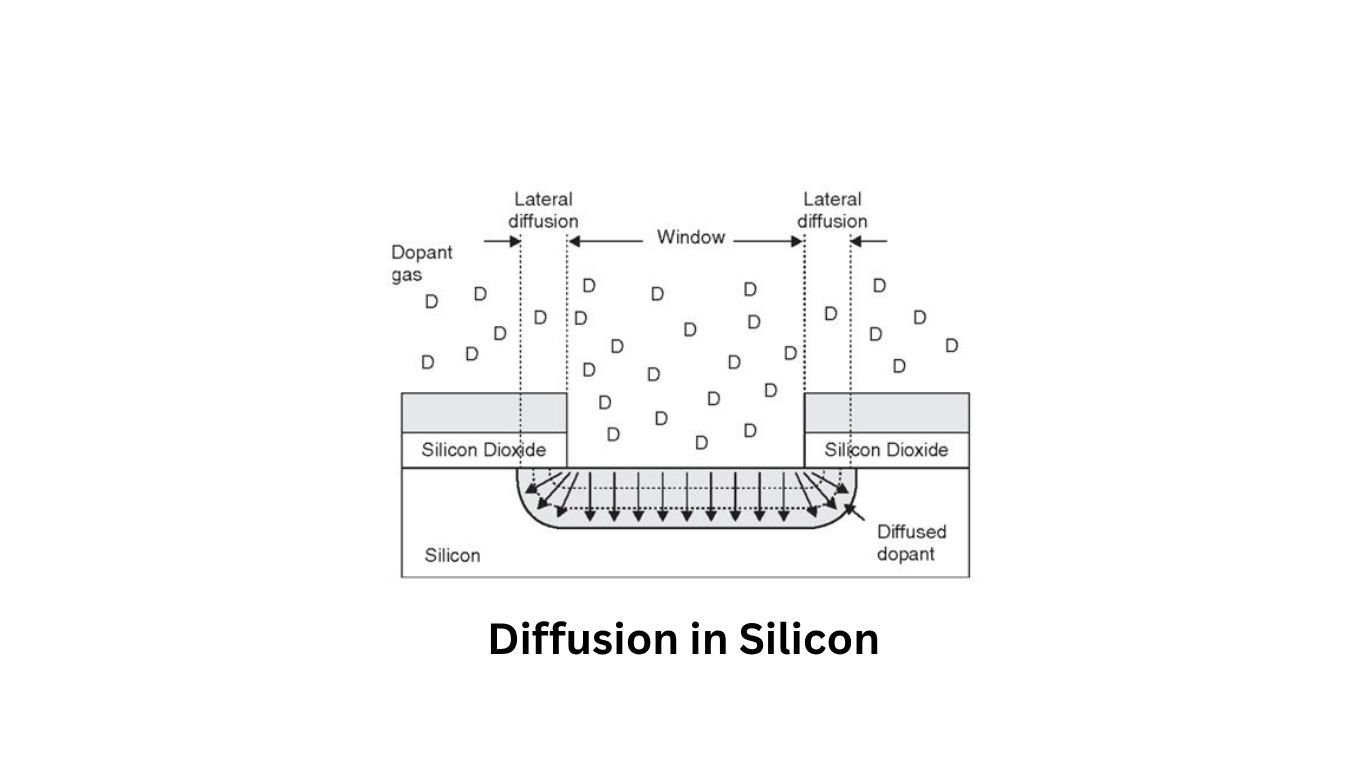

Diffusion with an Oxide Mask

An oxide mask is used to control where dopants enter the silicon wafer. Silicon dioxide can act as a barrier to many dopants under specified process conditions.

Selected openings are created in the oxide so that dopants can reach the exposed silicon. The masked regions receive substantially less dopant than the exposed regions, depending on the mask thickness, dopant species, and process conditions.

The oxide mask helps define the lateral boundaries of the doped regions. However, diffusion is not perfectly confined to the vertical direction. Dopants can also spread sideways beneath the mask, affecting the final dimensions of the doped area.

Constant-Source Diffusion

In constant-source diffusion, the dopant concentration at the silicon surface is treated as approximately constant throughout the diffusion step. This condition is commonly called infinite-source diffusion or constant-source diffusion.

The dopant concentration is highest near the surface and generally decreases with depth.

For an idealized, semi-infinite silicon substrate with a constant surface concentration, the concentration profile is described by:

Where:

• $C(x,t)$ = dopant concentration at depth $x$ and time $t$

• CsC_sCs​ = constant surface dopant concentration

• $D$ = diffusion coefficient

• $t$ = diffusion time

• $x$ = depth into the silicon

• $\mathrm{erfc}$ = complementary error function

This equation assumes a constant surface concentration and a diffusion coefficient that does not vary with position or concentration. Real fabrication processes may require more complex models.

Seven Important Concepts in Silicon Diffusion

1. Dopant Concentration

Dopant concentration determines how many electrically active donor or acceptor atoms are present in a given volume of silicon.

Increasing the active dopant concentration can increase conductivity, but the relationship is not unlimited or perfectly linear. At high concentrations, effects such as carrier mobility degradation and incomplete dopant activation can become important.

2. Temperature and Diffusion Time

Temperature strongly affects the diffusion coefficient. Higher temperatures generally increase dopant mobility, allowing dopants to travel farther during a given period.

Longer diffusion times also generally increase the diffusion depth.

A simplified relationship for the characteristic diffusion distance is:

This means the diffusion distance grows approximately with the square root of the product of diffusion coefficient and time under the assumed conditions.

3. Lateral Diffusion

Dopants spread in more than one direction. Even when an oxide mask restricts the exposed surface area, dopants can diffuse sideways beneath the mask.

This lateral spread can cause the final doped region to extend beyond the original mask opening. It must be considered when designing junction dimensions and closely spaced semiconductor structures.

4. Oxide Masking

Silicon dioxide is commonly used to control dopant entry into selected regions of silicon. The mask must be appropriate for the dopant species and process conditions.

Mask thickness, defects, and process temperature influence how effectively it blocks dopants. Openings in the oxide determine where significant dopant introduction occurs.

5. Dopant Redistribution During Oxidation

Thermal oxidation consumes some silicon at the surface as silicon dioxide forms. If oxidation follows doping, this movement of the silicon surface can alter the final dopant profile near the surface.

Dopants may also redistribute during the oxidation thermal cycle. The result depends on dopant species, temperature, time, and the interface conditions.

This is important because dopant concentration and junction depth can affect transistor behavior and device performance.

6. Diffusion Depth and Junction Formation

The depth reached by dopants influences the location of semiconductor junctions. A junction forms where the electrically active net doping changes from one conductivity type to the other.

The junction depth is therefore not simply the total distance traveled by individual atoms. It depends on the dopant concentration profile and the background doping of the silicon.

7. Diffusion Versus Ion Implantation

Ion implantation is another major technique for introducing dopants into silicon. It uses accelerated ions to place dopant atoms into the wafer, with the implantation energy influencing their depth distribution.

Ion implantation offers precise control over the initial dopant dose and depth profile. However, implantation and diffusion are not mutually exclusive: a process can use ion implantation followed by annealing, during which some dopant redistribution occurs.

Challenges of Doping Through Diffusion

Although thermal diffusion is useful, it presents several challenges in modern semiconductor manufacturing.

• Lateral spreading: Dopants can extend beneath mask edges, affecting device dimensions.

• Thermal budget: High temperatures can redistribute previously introduced dopants and affect other structures.

• Surface movement: Oxidation consumes silicon and can alter near-surface dopant profiles.

• Profile control: Achieving a precise junction depth and concentration profile requires careful process control.

• Multiple processing steps: Repeated high-temperature cycles can change dopant distributions established in earlier steps.

These challenges encouraged the widespread use of ion implantation for many modern doping applications. Thermal diffusion remains important in selected processes, and heat treatment is still essential for dopant activation and profile engineering.

Frequently Asked Questions

What is diffusion in silicon?

Diffusion in silicon is the thermally driven movement of dopant atoms through the silicon crystal. It is used to change the electrical properties of selected wafer regions.

Why is a high temperature needed for diffusion?

Higher temperatures increase the diffusion coefficient, enabling dopant atoms to move through the silicon lattice more rapidly. The required temperature depends on the dopant and the target concentration profile.

What is constant-source diffusion?

Constant-source diffusion assumes that the dopant concentration at the silicon surface remains approximately constant during the diffusion step. Under ideal conditions, it produces a concentration profile described by the complementary error function.

Why is silicon dioxide used as a diffusion mask?

Silicon dioxide can block or significantly restrict the entry of many dopants under suitable processing conditions. Openings in the oxide allow dopants to enter selected regions of the wafer.

Why does lateral diffusion occur?

Diffusion occurs in multiple directions. As a result, dopants can spread sideways beneath the edges of a mask instead of moving only vertically into the wafer.

What is the main difference between diffusion and ion implantation?

Thermal diffusion relies on heat-driven atomic movement, whereas ion implantation accelerates dopant ions into silicon. Implantation provides control over the initial dose and depth profile, while subsequent annealing can activate dopants and redistribute them.

Conclusion

Diffusion in silicon is a fundamental semiconductor fabrication process for introducing dopants and controlling the electrical properties of silicon. Temperature, time, dopant concentration, oxide masking, and lateral spreading all influence the resulting profile.

Although ion implantation provides important advantages in controlling dopant placement, diffusion and thermal processing continue to play significant roles in semiconductor manufacturing. Understanding both techniques helps explain how doped regions and semiconductor junctions are formed in modern integrated circuits.
