EUV Lithography: 7 Essential Challenges and Advantages

Extreme Ultraviolet (EUV) lithography is an advanced semiconductor patterning technology that uses light with a wavelength of approximately 13.5 nm to print extremely small features on silicon wafers.

The shorter wavelength compared with conventional deep ultraviolet (DUV) lithography enables advanced semiconductor manufacturing with fewer patterning steps for some critical layers. EUV lithography was introduced into high-volume semiconductor manufacturing in 2019 and has continued to evolve toward High-NA EUV for even smaller features.

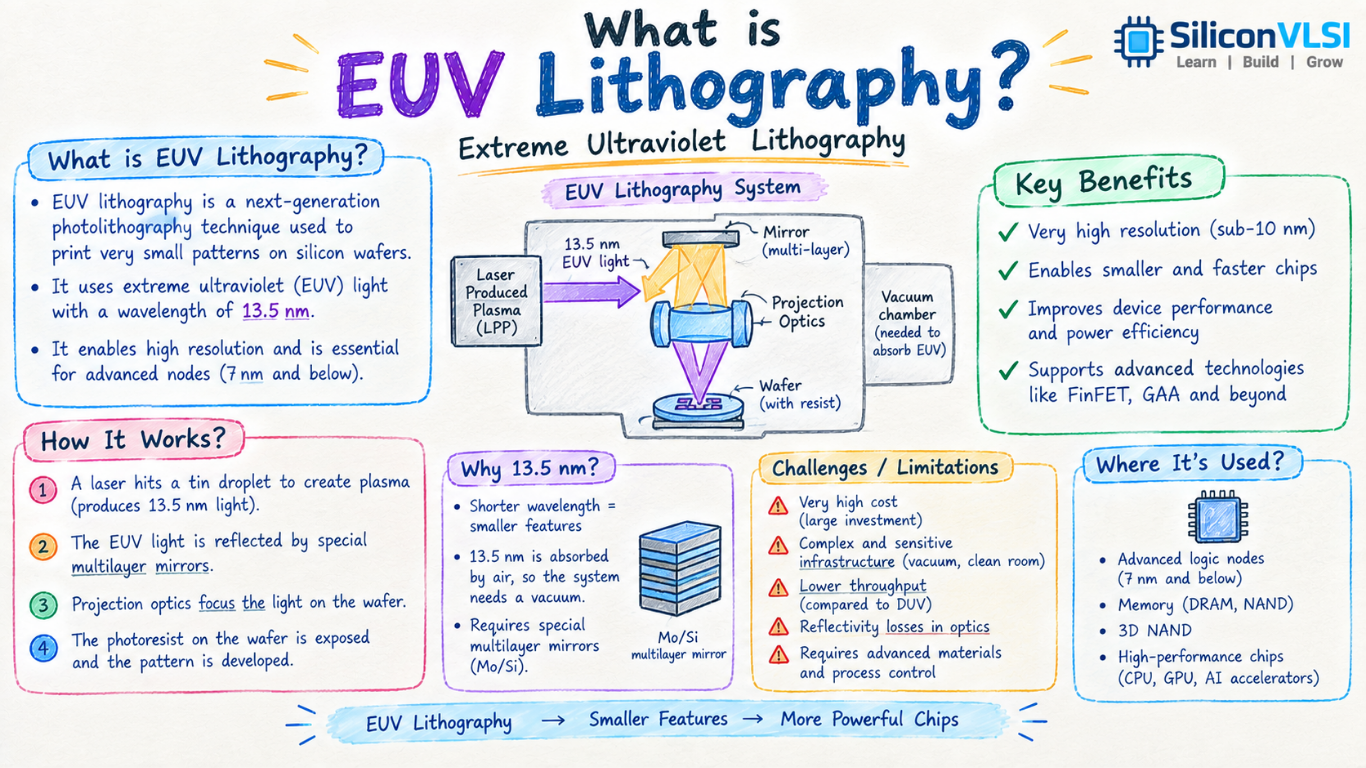

What Is EUV Lithography?

EUV lithography is a semiconductor manufacturing technique that uses 13.5 nm extreme-ultraviolet radiation to transfer circuit patterns from a photomask onto a photoresist-coated wafer.

The basic patterning sequence is:

EUV source → mirrors → reflective mask → projection optics → photoresist → wafer

Unlike conventional optical lithography, EUV light is strongly absorbed by air and most materials. Therefore, the exposure process takes place in a high-vacuum environment, and the system uses reflective optics rather than conventional transmissive lenses.

Why Is EUV Important for Semiconductor Manufacturing?

As transistor dimensions become smaller, conventional lithography techniques require increasingly complex patterning strategies.

With EUV, some critical layers can be patterned with fewer exposures than would otherwise be required using multiple-patterning approaches. This can reduce process complexity and potentially improve manufacturing cost and cycle time.

Imec has demonstrated the potential of single-exposure EUV patterning for advanced logic and memory structures, although the actual number of exposures required depends on the layer and process technology.

How Does EUV Lithography Work?

The process can be simplified into several steps.

1. Generating EUV Light

Modern EUV systems generate radiation using a laser-produced plasma process.

A high-power laser interacts with tiny droplets of tin, producing extremely hot plasma that emits EUV radiation around 13.5 nm.

2. Collecting and Reflecting the EUV Light

Because EUV radiation is strongly absorbed by conventional optical materials, ordinary glass lenses cannot be used for the projection system.

Instead, the light is directed using specially designed multilayer mirrors.

The EUV photons reflect from these mirrors and travel through the scanner toward the mask.

3. Reflective Photomask

Unlike the transmissive masks used in many conventional optical lithography systems, EUV masks are reflective.

An EUV mask contains a multilayer reflective structure and an absorber pattern. The reflected EUV radiation carries the pattern information toward the projection optics.

4. Projection Onto the Wafer

The patterned EUV light is projected onto a wafer coated with photoresist.

The resist undergoes a chemical change during exposure. Subsequent development and pattern-transfer processes convert the exposed pattern into structures that can be used during semiconductor fabrication.

7 Major Advantages of EUV Lithography

1. Very Short Wavelength

The 13.5 nm wavelength is much shorter than the 193 nm wavelength used in immersion DUV lithography.

A shorter wavelength enables higher imaging resolution, which is important for printing smaller semiconductor features.

2. Fewer Patterning Steps

One of the biggest advantages is the possibility of using a single EUV exposure for some critical layers that could otherwise require multiple DUV patterning steps.

This can reduce process complexity and the number of process steps. Imec has reported substantial reductions in patterning process steps when EUV is used instead of more complex multi-patterning approaches.

3. Improved Patterning for Advanced Nodes

EUV enables patterning of very small pitches and is an important technology for advanced logic and memory manufacturing.

However, a technology node name should not be treated as a direct measurement of the physical feature size printed by EUV. Different layers within a process may have different dimensions and patterning requirements.

4. Reduced Dependence on Multiple Patterning

For selected critical layers, EUV can reduce the number of lithography and associated processing steps compared with conventional multiple-patterning approaches.

This can simplify the overall process flow.

5. Potentially Lower Process Complexity

Fewer patterning operations can reduce:

• Process steps
• Alignment operations
• Process integration complexity
• Wafer cycle time
• Some sources of overlay error

The actual benefit depends on the particular process and layer.

6. Enables High-NA Scaling

The next major evolution is High-NA EUV, using a numerical aperture of approximately 0.55 compared with 0.33 NA in conventional EUV scanners.

High-NA EUV is being developed to provide additional resolution for future semiconductor scaling. Imec describes High-NA EUV as an important next step toward imaging extremely small pitches, including work targeting approximately 8 nm half-pitch.

7. Supports Advanced Logic and Memory

EUV is important for advanced semiconductor manufacturing because it can help pattern critical layers in modern logic and memory technologies.

Its continued development involves not only the scanner itself but also resist materials, masks, pellicles, metrology, inspection, etching, and process integration.

Major Challenges of EUV Lithography

Although EUV provides significant advantages, implementing it at high volume requires solving several difficult engineering problems.

1. EUV Source Power

Generating sufficient EUV power efficiently is one of the major engineering challenges.

Higher source power can improve scanner productivity, but increasing power also places greater demands on components such as mirrors, masks, pellicles, and resist processes.

Therefore, it is not appropriate to define modern EUV manufacturing using a single fixed source-power number such as the 200 W value mentioned in the original article. EUV systems and productivity requirements have continued to evolve.

2. Photoresist Performance

The photoresist must simultaneously provide:

• High resolution
• Adequate sensitivity
• Low line-edge roughness (LER)
• Good critical-dimension control
• Low defectivity
• Suitable pattern-transfer performance

These requirements are difficult to optimize simultaneously.

A particularly important issue is stochastic behavior, where random photon and material interactions can result in defects such as missing contacts, broken lines, or unwanted bridges.

3. EUV Mask Defects

EUV masks are reflective structures containing multilayer films.

Defects or imperfections in the mask can affect the pattern transferred to the wafer.

As feature sizes become smaller, mask-related effects become increasingly important, including mask 3D effects, which can influence image placement, focus, and pattern fidelity.

4. EUV Pellicle

A pellicle is a thin protective membrane positioned above the mask to help prevent particles on the mask surface from printing onto the wafer.

Developing an EUV pellicle is particularly challenging because the membrane must:

• Transmit as much EUV energy as possible
• Withstand high temperatures
• Maintain mechanical stability
• Survive repeated exposure
• Provide reliable particle protection

The pellicle inevitably interacts with the EUV beam, so transmission and thermal performance are important considerations.

5. Inspection and Metrology

Detecting defects at extremely small dimensions is difficult.

EUV manufacturing therefore requires sophisticated inspection and metrology techniques to monitor:

• Critical dimensions
• Line-edge roughness
• Overlay
• Mask defects
• Stochastic failures
• Pattern fidelity

As dimensions become smaller, metrology itself becomes increasingly challenging.

6. Stochastic Effects

EUV exposure involves a relatively small number of photons compared with longer-wavelength lithography for equivalent patterning conditions.

This contributes to statistical variations known as stochastic effects.

These effects can produce random pattern failures, including:

• Missing or incomplete contacts
• Broken lines
• Microbridges
• Line-edge roughness

Controlling these effects is one of the major challenges for continued EUV scaling.

7. High-NA EUV Complexity

High-NA EUV provides improved resolution but introduces additional challenges.

These include:

• Reduced depth of focus
• More demanding resist requirements
• Mask 3D effects
• Metrology challenges
• New mask requirements
• Anamorphic imaging
• Wafer field-stitching considerations

Therefore, High-NA EUV requires co-optimization of the scanner, mask, resist, etch process, and metrology ecosystem.

EUV vs DUV Lithography

EUV Lithography vs High-NA EUV

It is useful to distinguish conventional EUV from High-NA EUV.

Conventional production EUV systems use approximately 0.33 NA, while High-NA EUV systems are designed around 0.55 NA.

Increasing numerical aperture improves imaging resolution, but it also reduces depth of focus and creates new requirements for masks, resist materials, metrology, and process integration.

Is EUV Lithography Used in Mass Production?

Yes.

EUV was introduced into mass production of logic chips in 2019, and it is now an established technology in advanced semiconductor manufacturing. The industry continues to develop High-NA EUV for future generations.

Therefore, the original statement that EUV still needs to be solved “before we can widely use EUVL in mass production” is now outdated.

The major focus has shifted from making EUV possible for production to improving productivity, defect control, stochastic performance, cost, and High-NA scaling.

What Comes After EUV?

Research continues into patterning technologies beyond conventional EUV.

However, it is better not to present X-ray lithography with fixed wavelengths such as 1 nm or 0.1 nm as established successors to EUV. The future patterning landscape involves multiple research directions, and the practical technology path depends on resolution, throughput, materials, masks, cost, and integration requirements.

Current research also includes High-NA EUV and continued investigation of alternative patterning and materials technologies.

Frequently Asked Questions

What is EUV lithography?

EUV lithography is a semiconductor patterning technique that uses approximately 13.5 nm wavelength light to print extremely small features on semiconductor wafers.

Why is EUV lithography important?

Its short wavelength enables high-resolution patterning and can reduce the number of multiple-patterning steps required for some advanced layers.

What wavelength does EUV use?

EUV lithography uses a wavelength of approximately 13.5 nm.

Why does EUV use mirrors instead of lenses?

EUV radiation is strongly absorbed by most materials, including conventional optical materials. Therefore, EUV scanners use reflective multilayer mirrors in a vacuum environment.

What are the main challenges of EUV?

Important challenges include EUV source power, photoresist performance, stochastic defects, mask defects, pellicle performance, inspection, metrology, and process integration.

What is High-NA EUV?

High-NA EUV is the next major evolution of EUV lithography, using a numerical aperture of approximately 0.55 to provide higher imaging resolution.

Conclusion

EUV lithography has become a critical technology in advanced semiconductor manufacturing. Its 13.5 nm wavelength enables extremely high-resolution patterning and can reduce the complexity associated with multiple-patterning techniques.

However, EUV is much more than simply using a shorter wavelength. Successful manufacturing requires coordinated improvements in the EUV source, reflective masks, photoresists, pellicles, metrology, inspection, and etch processes.

The next major step is High-NA EUV, which aims to provide additional resolution for future semiconductor scaling while introducing new challenges in resist technology, mask design, depth of focus, and process integration.
