Voltage Drop: 7 Essential Causes, Effects & Solutions

Voltage drop is the reduction in electrical potential between two points in a circuit when current flows through a resistance or impedance. It occurs in wires, cables, PCB traces, connectors, contacts, power-distribution networks, and other circuit elements.

Understanding voltage drop is important because excessive drop can reduce the voltage available to a load and affect the performance, reliability, and efficiency of an electrical or electronic system.

In VLSI and semiconductor design, a similar concept is commonly discussed as IR drop, where resistance in the power-delivery network causes the supply voltage available to a circuit to decrease.

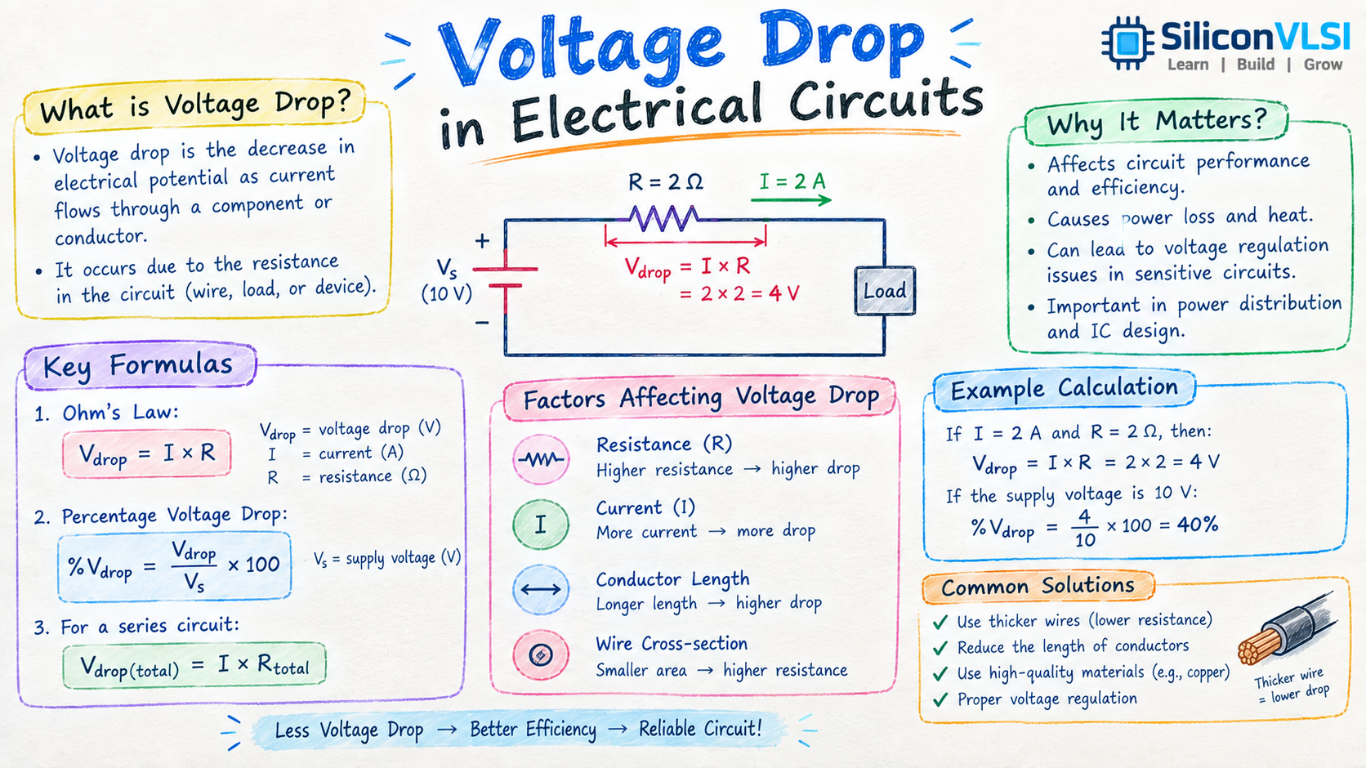

What Is Voltage Drop?

When current flows through a resistance, a potential difference develops across that resistance.

According to Ohm’s law:

V = I × R

Therefore, the voltage across a resistive element can be calculated as:

Vdrop = I × R

where:

• Vdrop = voltage across the resistance
• I = current flowing through the resistance
• R = resistance

For a fixed resistance, increasing the current increases the voltage across that resistance.

In a practical power-delivery path, this means the voltage measured at the receiving end can be lower than the voltage at the source.

Why Is Voltage Drop Important?

A power source may provide a specified voltage, but the load does not necessarily receive exactly that voltage.

For example, consider a heater with a resistance of 10 Ω connected through wires having a total resistance of 0.2 Ω.

The total circuit resistance is:

Rtotal = 10 + 0.2 = 10.2 Ω

If the source voltage is 120 V, the circuit current is approximately:

I = 120 / 10.2 ≈ 11.76 A

The drop across the wires is therefore:

Vwire = I × Rwire

Vwire = 11.76 × 0.2 ≈ 2.35 V

So the heater receives approximately:

Vload = 120 − 2.35 ≈ 117.65 V

This example shows why resistance in the power-delivery path matters, especially when the current is high.

Voltage Drop Formula

For a simple resistive circuit, the basic formula is:

Vdrop = I × R

If the sending-end and receiving-end voltages are known, the difference can also be calculated as:

Vdrop = Vs − Vr

where:

• Vs = sending-end voltage
• Vr = receiving-end voltage

Example 1: Calculate Voltage Drop

Suppose:

• Sending voltage = 120 V
• Receiving voltage = 115 V

Then:

Vdrop = 120 − 115

Vdrop = 5 V

The potential difference between the two measurement points is therefore 5 V.

The percentage drop relative to the sending voltage is:

Percentage Drop = (Vdrop / Vs) × 100

Percentage Drop = (5 / 120) × 100 ≈ 4.17%

This percentage can be useful when determining whether the supply remains within the required operating range of the load.

Voltage Drop in DC Circuits

In a simple DC resistive circuit, the calculation is straightforward:

Vdrop = I × R

For example, if a PCB trace has a resistance of 0.05 Ω and carries 2 A:

Vdrop = 2 × 0.05 = 0.1 V

Therefore, approximately 100 mV appears across that resistance.

This can become important in low-voltage electronic systems, where even a small reduction in supply voltage may represent a significant percentage of the total supply.

Voltage Drop in AC Circuits

In AC circuits, resistance may not be the only factor affecting the potential difference.

Inductive and capacitive effects can introduce reactance, so the total opposition to current is represented by impedance.

For an AC system, a simplified relationship is:

V = I × Z

where Z is the circuit impedance.

For practical AC power systems, factors such as:

• Conductor resistance
• Inductive reactance
• Power factor
• Cable length
• Conductor size
• Load current

can influence the voltage available at the load.

Major Causes of Voltage Drop

Several factors can increase the voltage difference along a power-delivery path.

1. High Resistance

Higher resistance produces a larger drop for the same current.

From:

Vdrop = I × R

we can see that increasing resistance directly increases the voltage across that resistance.

2. High Current

Even a relatively small resistance can create a significant drop when the current is large.

This is particularly important in:

• Power supplies
• Motors
• Battery systems
• High-current PCB traces
• VLSI power networks

3. Long Conductors

Longer wires generally have higher resistance because resistance increases with conductor length.

The resistance of a uniform conductor can be approximated by:

R = ρL / A

where:

• ρ = resistivity
• L = conductor length
• A = cross-sectional area

Therefore, increasing conductor length generally increases resistance.

4. Small Conductor Cross-Section

A smaller conductor cross-sectional area results in higher resistance.

Using:

R = ρL / A

reducing A increases R, which can increase the drop for a given current.

5. Poor Connections

Loose, corroded, or poorly manufactured contacts can introduce additional resistance.

This additional resistance can cause unwanted heating and reduce the voltage available to the load.

Effects of Excessive Voltage Drop

Excessive voltage drop can cause several problems depending on the system.

Reduced Load Voltage

The load may receive less voltage than its intended operating value.

Reduced Performance

Some electronic or electrical equipment may not operate correctly when the supply voltage falls outside its specified range.

Heating

Power dissipated in a resistive element is:

P = I²R

Therefore, a high-current path with significant resistance can generate considerable heat.

Power Distribution Problems

In power-distribution networks, excessive resistance can reduce the voltage available to downstream circuits.

In VLSI, this problem is commonly analyzed as IR drop in the power-delivery network.

Reliability Concerns

Excessive current density and resistive heating can contribute to reliability problems in conductors, contacts, vias, and interconnect structures.

How to Reduce Voltage Drop

There are several practical ways to reduce unwanted voltage loss in a resistive power path.

1. Increase Conductor Size

Increasing the cross-sectional area of a conductor reduces its resistance.

From:

R = ρL / A

a larger A results in lower resistance.

Lower resistance means less drop for the same current.

2. Reduce Conductor Length

Shortening the current path reduces resistance and therefore reduces the associated drop.

This is particularly useful in PCB and power-distribution design.

3. Use an Appropriate Supply Voltage

Power transmission can become more efficient when the same power is transferred at a higher voltage because the required current can be lower.

Since resistive power loss is:

P = I²R

reducing current can significantly reduce resistive losses.

However, the appropriate voltage depends on the system architecture, safety requirements, component ratings, and regulatory requirements.

4. Reduce Contact Resistance

Good-quality connectors, contacts, vias, solder joints, and terminations can reduce unwanted resistance.

This is especially important in high-current applications.

5. Improve the Power Distribution Network

In electronic and VLSI systems, power distribution can be improved by using suitable:

• Power rails
• Power straps
• Metal widths
• Via arrays
• Grid structures
• Decoupling capacitors

In VLSI physical design, these techniques help control supply variation and IR drop across the chip.

Voltage Drop in VLSI

Voltage drop is especially important in modern VLSI because integrated circuits operate at relatively low supply voltages while containing very large numbers of switching devices.

The resistance of power-grid metal and vias causes a voltage difference between the power source and different locations on the chip.

This is commonly referred to as IR drop.

The basic relationship is:

VIR = I × R

There are two commonly discussed categories:

Static IR Drop

Static IR drop is associated with relatively steady-state current demand and the resistance of the power-delivery network.

Dynamic IR Drop

Dynamic IR drop occurs when switching activity causes rapidly changing current demand.

Dynamic effects can be influenced by:

• Clock activity
• Simultaneous switching
• Local current demand
• Power-grid impedance
• Decoupling capacitance

Excessive supply variation can affect timing and circuit reliability, making IR-drop analysis an important part of physical design signoff.

Voltage Drop vs Power Loss

These two concepts are related but should not be treated as identical.

Voltage drop describes a potential difference across a component or resistance.

Power loss describes energy converted or dissipated, commonly as heat in a resistive element.

For a resistor:

P = V × I

and because:

V = I × R

we obtain:

P = I²R

Therefore, a resistive path can produce both a voltage drop and power dissipation.

Voltage Drop vs IR Drop

IR drop is therefore a specific and very important case of resistive voltage drop.

Does Voltage Drop Always Reduce Current?

Not necessarily.

The original current in a circuit depends on the complete circuit conditions, including the source, load, and other impedances.

A voltage drop across one element does not automatically mean that current must decrease.

For example, in a series circuit, the same current flows through each series element, while the source voltage is distributed among those elements according to their impedances.

Therefore, it is more accurate to say that a resistive path produces a voltage drop when current flows through it.

Frequently Asked Questions

What is voltage drop?

It is the potential difference that occurs between two points when current flows through a resistance or impedance.

What is the basic voltage drop formula?

For a resistive element:

Vdrop = I × R

where I is current and R is resistance.

What causes voltage drop?

Common causes include conductor resistance, long wires, small conductor size, high current, and resistance in connectors or contacts.

How can voltage drop be reduced?

It can generally be reduced by lowering resistance, increasing conductor size, shortening the current path, improving connections, or reducing current where the system architecture allows it.

What is IR drop in VLSI?

IR drop is the reduction in supply voltage caused by current flowing through the resistance of a chip’s power-delivery network.

Does voltage drop mean power is lost?

Not necessarily by itself. A potential difference exists across a circuit element. When that element has resistance and current flows through it, electrical power is dissipated according to P = I²R.

Conclusion

Voltage drop is an important concept in electrical, electronic, PCB, and VLSI design. It occurs when current flows through resistance or impedance, producing a potential difference between two points.

The basic resistive relationship is:

Vdrop = I × R

Excessive drop can reduce the voltage available to a load and may cause performance, heating, or reliability problems. Increasing conductor size, reducing resistance and path length, improving connections, and designing an effective power-distribution network are common ways to control it.

In VLSI, the same principle appears as IR drop, where resistance in the on-chip power network causes supply-voltage variation across the design.
